❶Information

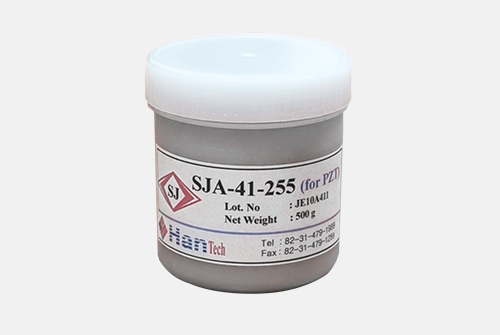

- Metal Paste (Ag, Ag-Pd, W,Mo etc)
- For electrod or Insulater of electronic parts
- Coating Metrod :
Silk or stainless steel screen printing.
Dipping, Wet spray, Painting, Rolling.
- Metal or Glass or Oxides etc Paste 제조 가능
(원하시는 분말로 용도에 따라 소량 Paste order made 제조 가능 - Powder 제공시 Paste 제조 공급해드립니다)
- 소량(100g 부터) 주문제작 가능
- 용도에 따라 order made 제조 가능
❷SPEC
1. Usage
1-1. Application method
- Silk or stainless steel screen printing method (150~400mesh)
- Dipping , Painting , Rolling
- Wet spray
1-2. Drying condition
- 5~10 minutes at 150~200℃
1-3. Curing or Firing condition
- Curing : ~180℃
- Firing : 550 ~ 850℃ and other conditions.
1-4. Soldering condition
- 62Sn/36Pb/2Ag(60Sn/40Pb)
- 2~3 seconds at 210~280℃
1-5. Storage
- It should be stored at dark room and room temperature. OR in refrigerator
- Shelf life of paste in unopened container is 6 Months
1-6. Packing
- Minimum 100g 이상 (PP sealed vessel)
* Notice : Please fully agitate before use
2. Applications
1) High Temperature type silver paste (Fired On Type)

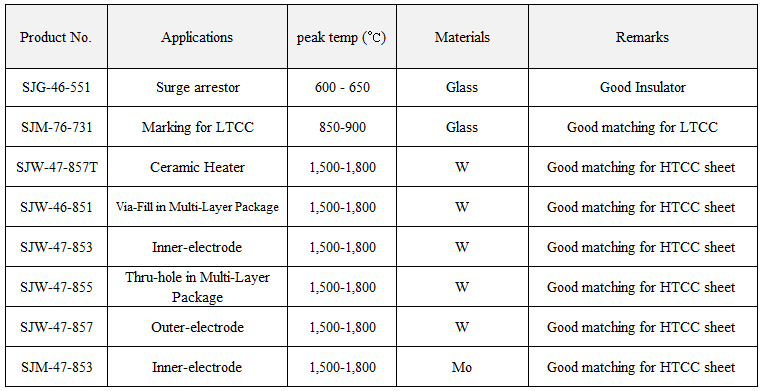

2) Other component paste
- 상기 Item외 고객 주문에 따른 Paste 제조 가능
3. Mo-Mn Paste
- For surface conductor on aluminum nitride silicon nitride, beryllium oxide, alumina substrate material
- Screen printable
- Sintering Temp : 1300℃ ~ 1580℃ (in H atmosphere)
- Maker : Ceronics (USA)
※ Mo-Mn paste of Ceronics Inc
