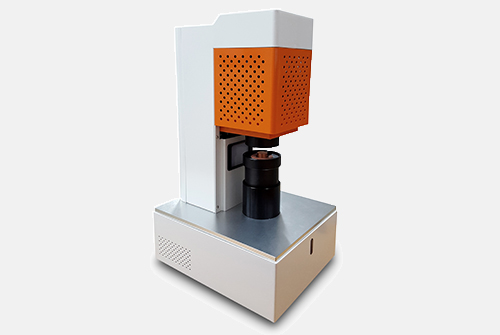

Thermal Conductivity Measurement System

다양한 재료의 열전도율 측정 : 방열테이프, Heat Sink, 세라믹, 금속호일 등
편리한 Auto Measurement ( Software 제공, RS485 통신지원 )
±0.001℃ resolution의 온도 측정
열평형측정법(Steady-state Heat Flux Method), 수직 측정




❶Information

- Test Method

 ASTM D5470


1. Measuring Range : 0.1 ~ 80 W/mk

2. Thermal Resistance Range : 0.05 ~ 5.0 ℃/W

3. Regarding Sample Approval Sample Thickness

Approval Sample Thickness : 0.02 ~ 10 mm

4. Operation Temperature Range : 40 ~ 100 ℃


Feature

- Fully automatic operation by Quantum-E software

- Automatic pressure control

- High performance temperature controller built-in coolant system

( No need the coolant unit )

- Easy & simple caiculatio for Thermal conductivity

- Sealed structure for prevent influenced by outside

- Automatic adjusting measuring temperature conditions




❷SPEC

※ Software Configuration
