❶Information

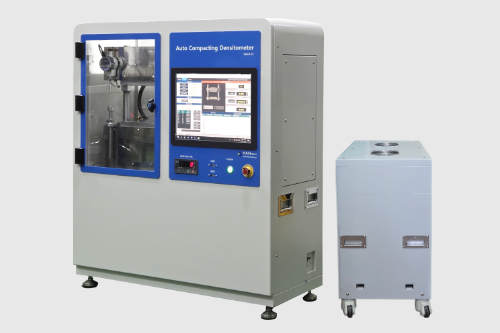

Auto Compacting Densitometer
(압력별 자동 압축 밀도 측정기)
- 압력별 자동 가압 , 가압된 시편의 두께를 자동으로 측정
- 측정된 data 와 입력값 (중량,size)으로 실시간 가압 밀도 측정
운전 방법
• Powder 무게 측정후 mold 에 투입
• mold size 및 powder 중량을 입력
• 측정하려는 압력을 설정후 start
• 압력별 가압된 시편의 두께를 자동으로 측정 (두께 측정 : 0.01mm 단위측정 )
• 측정 data 와 입력값 (분말 중량 , mold size)으로 실시간 가압밀도 측정
• 밀도 측정 data 자동 저장 및 출력가능
❷SPEC
* Auto Compacting Densitometer
- Measures Compacting Density during Pressurization
- Clamping Force and Mode : Max 15 Tons, Automatic
- Digital Dial Gauge (0.01mm) Thickness Measure unit via Software

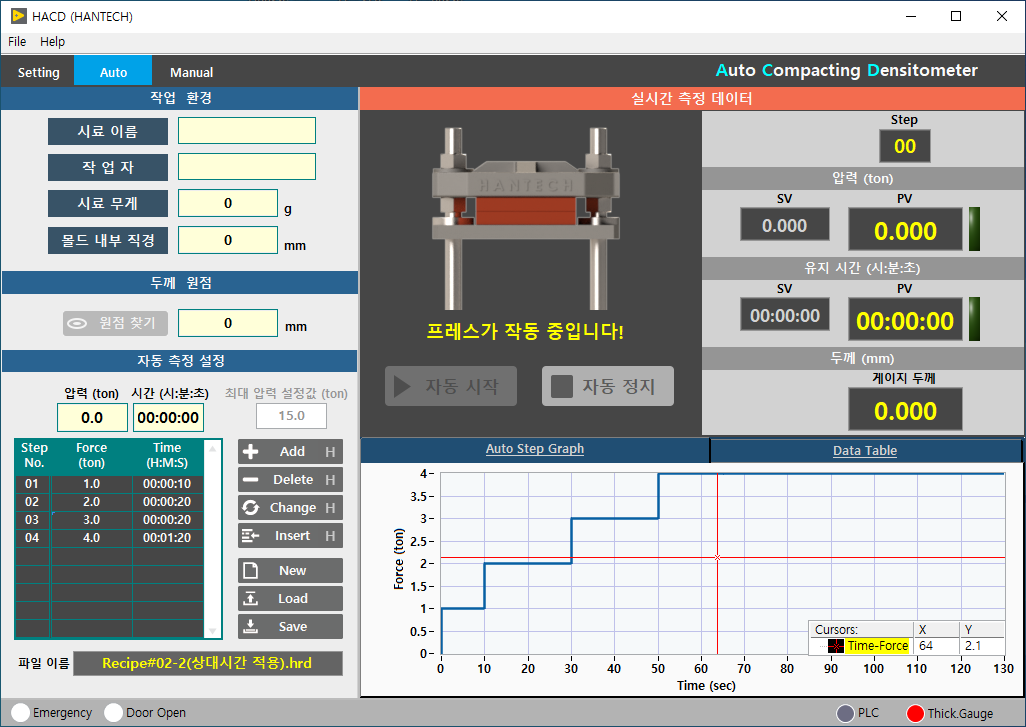

- Controller : Touth Screen & Auto Measure Density, Data Saving & PC Output by Software
* Auto Hydraulic Lab press
- Benchtop Type
- Clamping force : Max 15Tons
• pressure accuracy : ± 1% in set pressure at 10,000 kgf up
- Working platen size : 180 x 180 mm
- RAM StroKe : Max 150mm
- Two threaded columns
- controller : touch screen PC (15 inch )
• pressure digital indicator & electric lifting
(pressure & Time control) by PLC & Software
• Programmable control (5 pattern 10 step per pattern)
• 1 cycle Auto & manual operating
- consist of :
• Main Press Frame with case
• Hydraulic unit (Hydraulic pump & cylinder)
• Control unit (Touch screen & PLC with software )
• Thickness measure unit
- safety : Acrylic safety cover with Door interlock & Emergency stop
- Electronic : AC 220V , 1phase (0.8Kw )
- Dimension : • Main body : 860ⅹ400ⅹ1000mm
• Hydraulc unit : 560ⅹ360ⅹ620mm
* Option :
- Heating plate
- Different pressure type available (30T , 50T , 100T ,200T )
- Clamping Mold
