Air Classifier

초미분 기류 분급기
Rotor로 입자를 부양시켜 분급 함
Jet Mill 과 직렬 연결하여 분쇄 및 분급을 동시에 처리 가능

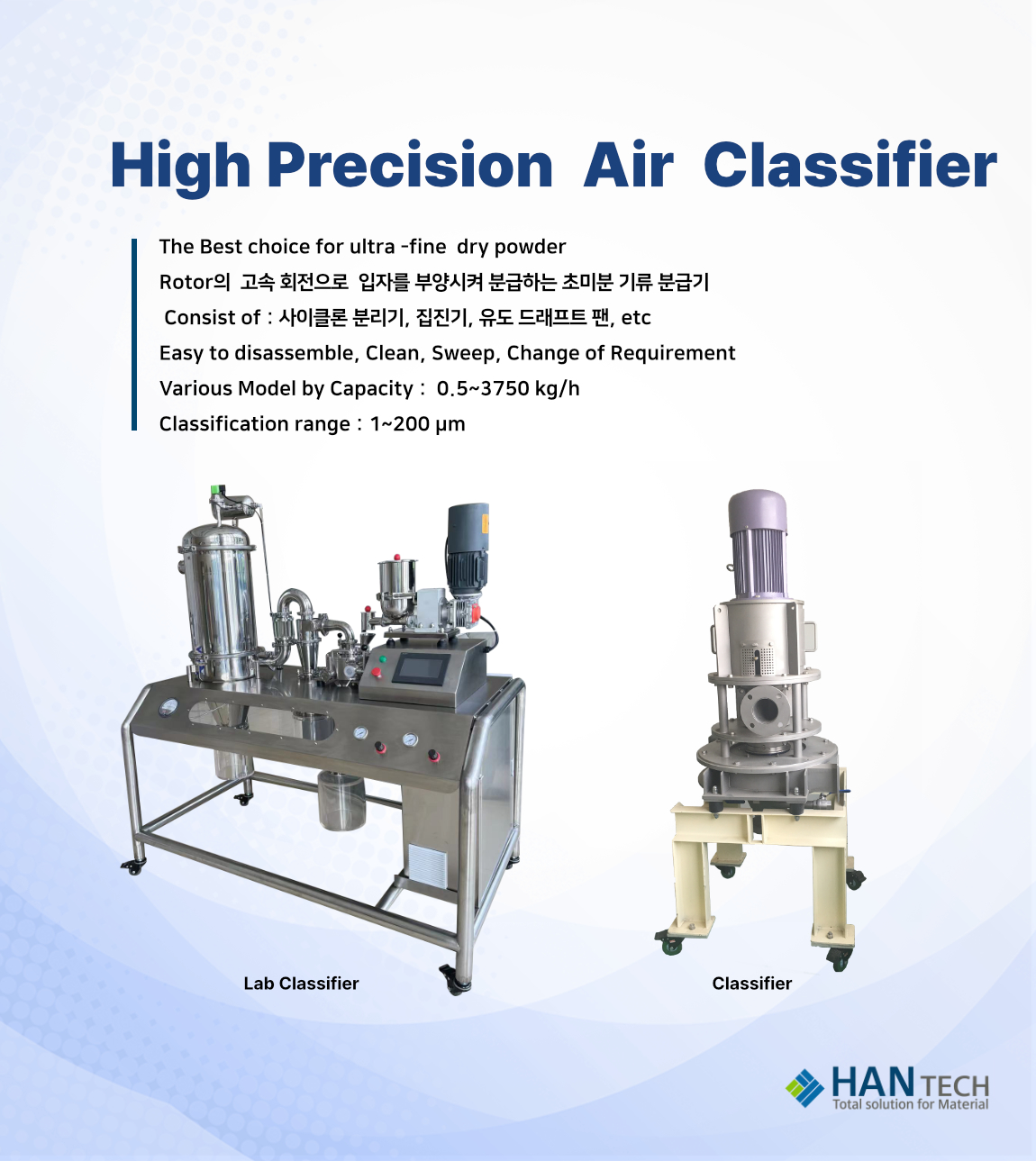

* Air Classifier Diagram





❶Information

- Fine classification of various shape dry powders

   ( Spherical, flaky, irregular shape & as well as diffient densities)

 - Consist of : 사이클론 분리기, 집진기, 유도 드래프트 팬, etc

- Can be used is series with grinding equipments

- The control system uses program control, with real-time display of operating status

- Separator's (rotor) Mat'l : Zirconia, Alumina, SUS

- Various Model : Capacity (0.5~3750 kg/h)

- Classification range : 1~200 μm

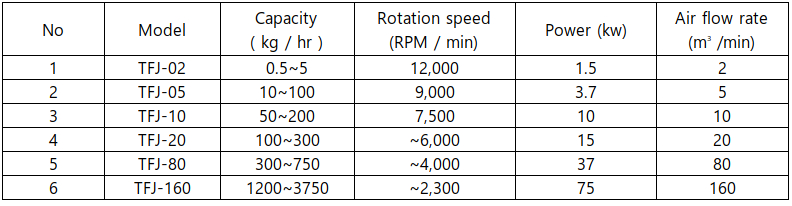

❷SPEC

※ The throughput of the table contents may vary deperding on the Mat'l

* 상기 장비는 수입 판매하며 설치, 시운전, A/S는 한테크에서 운영 및 관리 함.

※ Sample test available

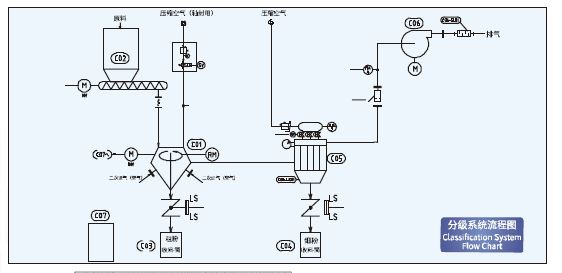

* Air Classifier Flow Chart

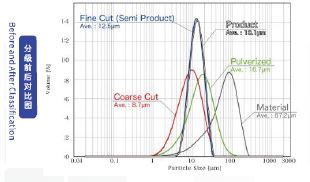

* Particle Size distribution by Air Classifier
