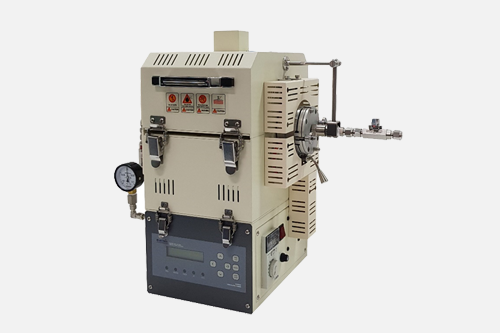

Rotary Tube Furnace

견적 요청시 처리온도 및 처리 량 (Powder Bulk density도 알아야 함)을 알려주시면 견적 가능
Tube 기본 재질은 Quartz이나 SUS or Inconel 재질로 제작 가능.
Batch type 부터 연속 type까지 다양하게 제작 가능
Sample Test 가능 (Tube 구입시)





❶Information

* 견적 요청시 처리온도 및 처리량 (Powder Bulk density도 알아야 함)을 알려주시면 견적 가능

* Tube 기본 재질은 Quartz이나 SUS or Inconel 재질로 제작 가능.

* Mini type은 Glove Box 내 설치 가능




* Sample Test 가능 (Tube 구입 시)

★ 상기 규격외 다양한 Chamber size 제작 가능

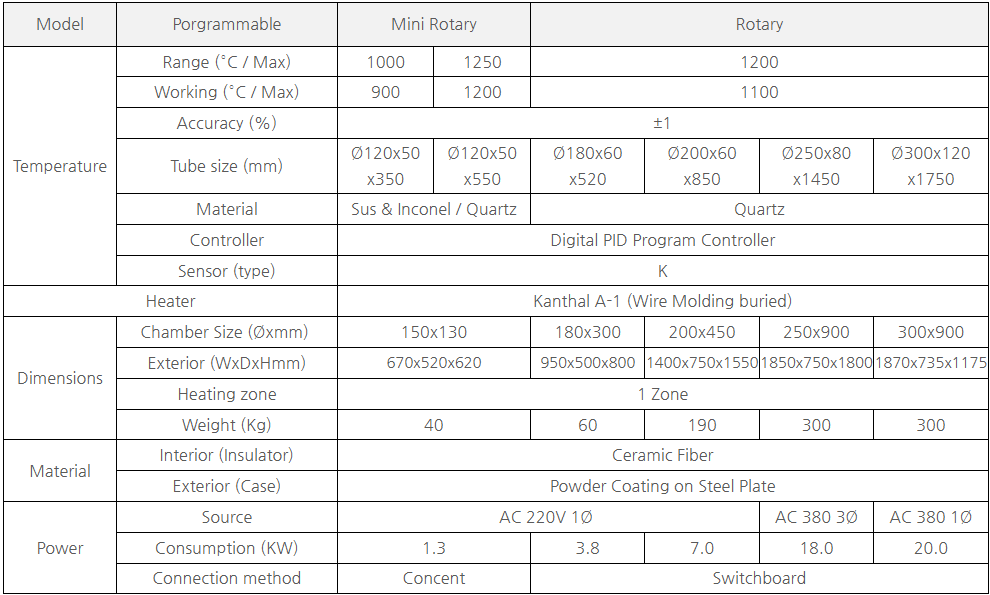

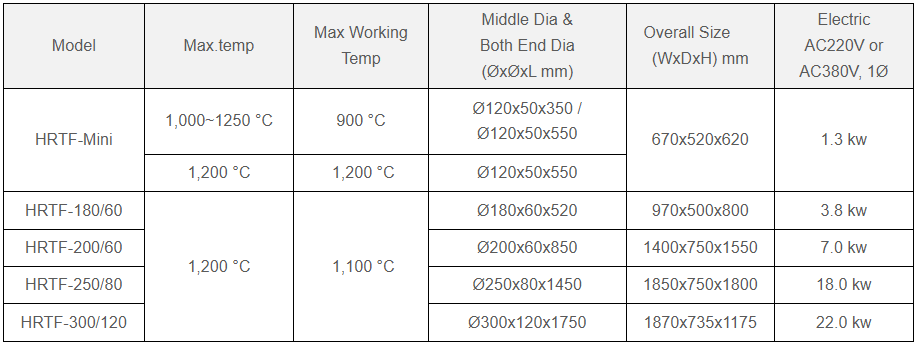

❷SPEC

* Tube 및 Gas Mask set 및 Accessories 부속품 개별 추가 구입 가능



* A/S 기간은 설치후 1년 (단 Heater는 무상보증 없음), 전기 공사는 별도임

* 주문자 사양으로 다양하게 제작 가능함

▶ According to customer's order, it is possible to manufacture according to power, size, shape, etc.




※ 'Gas Purging & Vacuum System Unit' 관련 내용 및 사진 정보는 아래에서 확인 가능함.

Gas Purging & Vacuum System Unit
